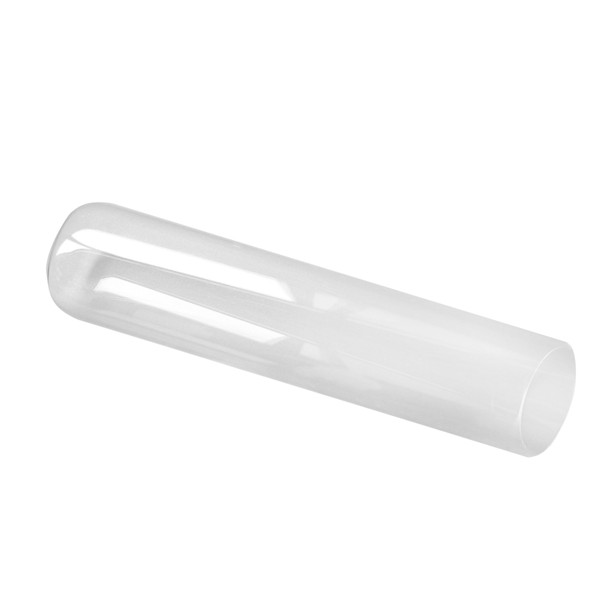

Quartz Sleeve For Ultraviolet Water Sterilizer

Quartz Sleeve For Ultraviolet Water Sterilizer Featured Image
  • Quartz Sleeve For Ultraviolet Water Sterilizer
  • Quartz Sleeve For Ultraviolet Water Sterilizer
  • Quartz Sleeve For Ultraviolet Water Sterilizer

Quartz Sleeve For Ultraviolet Water Sterilizer

Short Description:

Lightbest offers a wide variety of quartz sleeves, applied extensively in water treatment systems, air sterilization units and other specialized equipment. They are available in a wide range of diameters and wall thicknesses, double open ended or one dome ended. Also, the length, outside diameter and wall thickness could be customized, the wall thickness of 1.5mm are most widely used.


products_icon

Product Detail

Product Tags

Quartz Sleeves

OD (mm) ID (mm) WT (wall thickness-mm) Applicable lamps type
19.0 17.0 1.00 15mm (T5) OD standard-output and high-output lamps without lamp bases
20.5 18.0 1.25 15mm (T5) OD standard-output and high-output lamps with AL. bases
22.0 19.0 1.50 15mm (T5) OD standard-output and high-output lamps with AL. bases
22.0 20.0 1.00 15mm (T5) OD standard-output and high-output lamps
22.5 20.0 1.25 15mm (T5) OD standard-output and high-output lamps
22.6 19.6 1.50 15mm (T5) OD standard-output and high-output lamps
22.6 20.0 1.30 15mm (T5) OD standard-output and high-output lamps
23.0 20.0 1.50 15mm (T5) OD standard-output and high-output and Amalgam  lamps
24.5 22.0 1.25 15mm (T5) OD standard-output and high-output and Amalgam  lamps
25.0 22.0 1.50 19mm (T6) OD standard-output and high-output and Amalgam  lamps
28.0 25.0 1.50 19mm (T6) OD standard-output and high-output and Amalgam  lamps
30.0 26.0 2.00 19mm (T6) OD standard-output and high-output and Amalgam  lamps
30.0 26.5 1.75 19mm (T6) OD standard-output and high-output and Amalgam  lamps
32.0 29.0 1.50 19mm (T6) OD standard-output and high-output and Amalgam  lamps
33.0 30.0 1.50 19mm (T6) OD standard-output and high-output and Amalgam  lamps
36.0 32.0 2.00 25mm (T8) OD standard-output and high-output and Amalgam  lamps
38.0 34.0 2.00 25mm (T8) OD standard-output and high-output and Amalgam  lamps
38.0 35.0 1.50 25mm (T8) OD standard-output and high-output and Amalgam  lamps
45.0 42.0 1.50 32mm (T10), 38mm (T12) OD standard-output and high-output and Amalgam  lamps
48.0 44.0 2.00 32mm (T10), 38mm (T12) OD standard-output and high-output and Amalgam  lamps
48.0 45.0 1.50 32mm (T10), 38mm (T12) OD standard-output and high-output and Amalgam  lamps
F40.0 36.0 2.00 PL uv lamps
F40.0 37.0 1.50 PL uv lamps
F44.0 40.0 2.00 PL  uv lamps
others on request on request
Noted: Length ranges according to your size;                                  QS: quartz sleeve with single round-end closed;
QD: quartz sleeve with double-end open;                                      QF: quartz sleeve with single flat-end closed.
QS: quartz sleeve with single round-end closed
Types Spec. Applied UV lamps
QS23200170 One dome ended, 23*20*170mm, +0.8/-0.2mm (T5)135-150mm
QS23200245 One dome ended, 23*20*245mm, +0.8/-0.2mm (T5)135-212mm
QS21180270 One dome ended, 21*18*270mm, +0.8/-0.2mm (T5)135-254mm
QS23200295 One dome ended, 23*20*295mm, +0.8/-0.2mm (T5)135-287mm
QS23200360 One dome ended, 23*20*360mm, +0.8/-0.2mm (T5)135-330mm
QS23200580 One dome ended, 23*20*580mm, +0.8/-0.2mm (T5)135-550mm
QS23200875 One dome ended, 23*20*875mm, +0.8/-0.2mm (T5)135-843mm
QS23200900 One dome ended, 23*20*900mm, +0.8/-0.2mm (T5)135-843mm
QS23200940 One dome ended, 23*20*940mm, +0.8/-0.2mm (T5)135-910mm
QS23201200 One dome ended, 23*20*1200mm, +0.8/-0.2mm (T5)135-1148mm
QS23201650 One dome ended, 23*20*1650mm, +0.8/-0.2mm (T5)135-1554mm
QS28251200 One dome ended, 28*25*1200mm, +0.8/-0.2mm (T6)135-1148mm
QS28251570 One dome ended, 28*25*1570mm, +0.8/-0.2mm (T6)135-1554mm
QS28251620 One dome ended, 28*25*1620mm, +0.8/-0.2mm (T6)135-1148mm
QS28251788 One dome ended, 28*25*1788mm, +0.8/-0.2mm (T6)135-1554mm
QS38350450 One dome ended, 38*35*450mm, +0.8/-0.2mm (T8)135-436mm
QS45421600 One dome ended, 45*42*1600mm, +0.8/-0.2mm H lamp 135-1148mm
QF43370170 One flat ended, 43*37*170mm, +0.8/-0.2mm (T5)135-150mm
QD: quartz sleeve with double-end open
Types Spec. Applied UV lamps
QD23200875 Double open ended, 25*22*875mm, +0.8/-0.2mm (T5)135-843mm
QD23200900 Double open ended, 25*22*900mm, +0.8/-0.2mm (T5)135-843mm
QD25220890 Double open ended, 25*22*890mm, +0.8/-0.2mm (T5)135-843mm
QD40361680 Double open ended, 40*36*1680mm, ±0.5mm (T5)135-1554mm

Product introduction

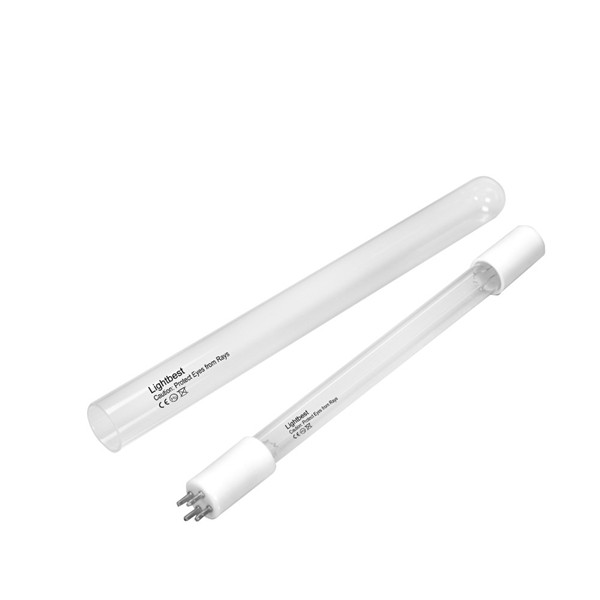

Quartz sleeve is a transparent quartz glass tube, manufactured from high-purity quartz sand by advanced continuous melting equipment. As a kind of UV germicidal lamp spares, it is characterized by high purity, high UV transmittance, good thermal stability and remarkable dimensional accuracy, making it an indispensable device for protecting lamps from external damage and extending working life.
