Electronic Ballasts Ultraviolet Lamp Power Supply

Short Description:

Electronic ballast is an electronic device that is used to regulate the current and voltage in an electrical circuit.

The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately in practical application. There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy.

Lightbest can provide multiform electronic ballasts and inverter compatible with mercury and amalgam based ultraviolet lamps,provides a low maintenance, energy efficient solution for uv germicidal lighting applications, including water sterilization, air purification and surface disinfection.




products_icon

Product Detail

AC input

DC Input

Intergrated

Product Tags

Features:

1. Obvious energy saving effect, which can save electricity by 80%.
2. It lights up as soon as it is turned on, no starter is needed, and the working voltage is 99-264V wide.
3. It can automatically protect the blown fuse under conditions such as no-load for a long time and ultra-high voltage.
4. No ordinary 60HZ AC stroboscopic, stable vision, can protect eyesight, and no noise.
5. Anti-interference, no interference to TV sets, radio cassette recorders, etc., with a life span of more than 20,000 hours.
6. There is no impact on the light tube, which can effectively protect the life of the light tube.

Our Advantage:

1.The working status can be displayed by the LED indicator light.
2.Some ballasts have alarms, and the alarm sounds when the lamp is broken.
3. Electronic ballasts are environmental and energy saving.
2. Electronic ballasts matched well with uv germicidal lamps.
3. Electronic ballasts are CE,UKCA,RoHS,FCC and UL certified.
4. Offer OEM or ODM service.

Using & matters:

1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up.
2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced.
3.In addition, the voltage of the ballast must match the power supply voltage.

  • Previous:
  • Next:
    • Electronic Ballasts for Standard Output Type UV Lamps-220-240VAC, 50/60HZ
    Type Current & Input
    Voltage    		 Input Power
    (watt)    		 Size
    (mm)    		 Lamp Current
    (A)    		 Lamp Power
    (watt)    		 Lamp Models
    PH12-180-10 0.08A@230V 5-10 80*40*22 0.16-0.18 4-11 GPH135T5/4W, GPH212T5/6W, GPH287T5/8W, GPL5W, GPL7W, GPL9W, GPL11W， TUV4W, TUV6W, TUV8W, LTC4T5, LTC6T5, LTC8T5
    PH12-425-18 0.17A@230V 12-21 80*40*22 0.36-0.42 10-17 GPH212T5/10W, GPH287T5/14W, GPH357T5, G15T8， TUV11W, TUV16W, TUV15WT8, LTC11T5, LTC16T5
    PH11-425-40 0.37A@230V 28-46 165*38*26 0.39-0.43 21-41 GPH436T5, GPH843T5, TUV25WT5, TUV36T5, GPL36W
    PL11-425-40 0.37A@230V 28-46 165*38*26 0.39-0.43 21-41 GPH436T5, GPH843T5, TUV25WT5, TUV36T5, GPL36W
    PL1-425-90 0.69A@230V 87 215*44*26 0.39-0.43 55-79 GPH1148T5, GPH1554T5, GPH1630T5, G48T5, G64T5, G67T5, TUV64T5



    Electronic Ballasts for Standard Output Type UV Lamps-110-120VAC, 50/60HZ
    Type Current & Input
    Voltage    		 Input Power
    (watt)    		 Size
    (mm)    		 Lamp Current
    (A)    		 Lamp Power
    (watt)    		 Lamp Models
    PW12-180-10A 0.15A@120V 5-10 80*40*22 0.16-0.18 4-11 GPH135T5/4W, GPH212T5/6W, GPH287T5/8W, GPL5W, GPL7W, GPL9W, GPL11WTUV4W, TUV6W, TUV8W, LTC4T5, LTC6T5, LTC8T5
    PH12-180-10A 0.15A@120V 5-10 80*40*22 0.16-0.18 4-11 GPH135T5/4W, GPH212T5/6W, GPH287T5/8W, GPL5W, GPL7W, GPL9W, GPL11WTUV4W, TUV6W, TUV8W, LTC4T5, LTC6T5, LTC8T5
    PH12-425-18A 0.31A@120V 12-21 80*40*22 0.36-0.42 10-17 GPH212T5/10W, GPH287T5/14W, GPH357T5, G15T8
    TUV11W, TUV16W, TUV15WT8, LTC11T5, LTC16T5
    PL1-425-90A 1.30A@120V 87 215*44*26 0.39-0.43 55-79 GPH1148T5, GPH1554T5, GPH1630T5, G48T5, G64T5, G67T5, TUV64T5



    Electronic Ballasts for Standard Output Type UV Lamps-110-240VAC, 50/60HZ

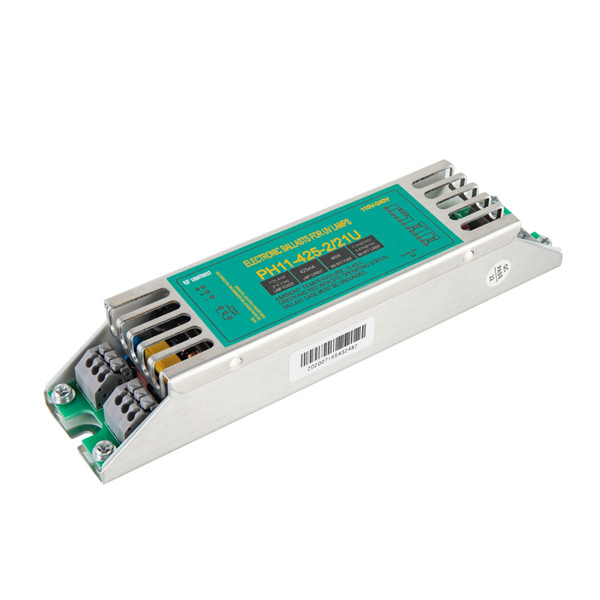

    PH11-425-2/21U 0.15A@120V 5-10 80*40*22 0.16-0.18 1*21-41
    2*14-21    		 GPH135T5/4W, GPH212T5/6W, GPH287T5/8W, GPL5W, GPL7W, GPL9W, GPL11WTUV4W, TUV6W, TUV8W, LTC4T5, LTC6T5, LTC8T5
    PH7-425-75U 0.15A@120V 5-10 80*40*22 0.16-0.18 1*55-79 2*28-41 GPH135T5/4W, GPH212T5/6W, GPH287T5/8W, GPL5W, GPL7W, GPL9W, GPL11WTUV4W, TUV6W, TUV8W, LTC4T5, LTC6T5, LTC8T5
    PH2-425-2/40U 0.31A@120V 12-21 80*40*22 0.36-0.42 1*55-79 2*28-41 GPH212T5/10W, GPH287T5/14W, GPH357T5, G15T8
    TUV11W, TUV16W, TUV15WT8, LTC11T5, LTC16T5



    Electronic Ballasts for High Output Type UV Lamps
    Type Current & Input
    Voltage    		 Input Power
    (watt)    		 Size
    (mm)    		 Lamp Current
    (A)    		 Lamp Power
    (watt)    		 Lamp Models
    PL1-800-100 0.83A@230V 105 215*44*26 0.75-0.85 35-95 GPH436T5/HO, GPH843T5/HO, TUV36T5/HO, TUV55WT8/HO, TUV75WT8/HO

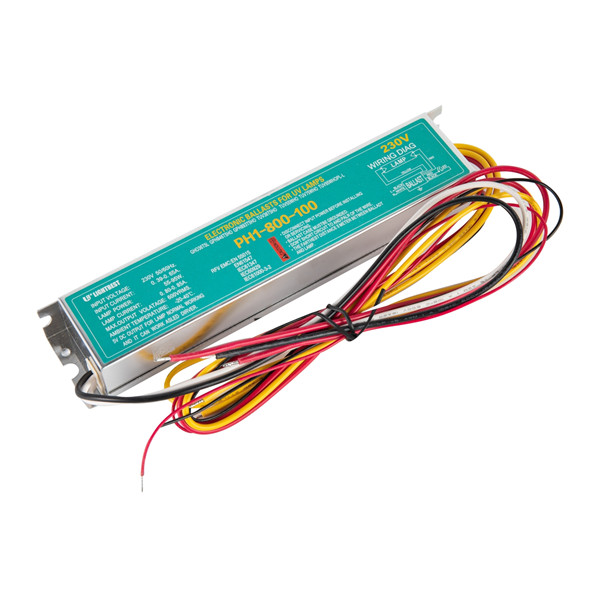

    PH1-800-100 0.83A@230V 105 215*44*26 0.75-0.85 35-95 GPH436T5/HO, GPH843T5/HO, TUV36T5/HO, TUV55WT8/HO, TUV75WT8/HO
    PH2-800-2/75 0.73A@230V 78-167 200*64*29 0.75-0.85 1*95-155
    2*35-75    		 1*lamp: GPH1554T5/HO, GHO64T5, TUV64T5/HO,GPL95W/HO
    2*lamps: GPH436T5/HO, GPH843T5/HO, GHO36T5, TUV36T5/HO, TUV55WT8/HO, TUV75WT8/HO, GPL35W/HO, GPL60W/HO
    PH2-800-2/75U 0.73A@240V
    1.58A@110V    		 78-167 200*64*29 0.75-0.85 1*95-155
    2*35-75    		 1*lamp: GPH1554T5/HO, GHO64T5, TUV64T5/HO,GPL95W/HO
    2*lamps: GPH436T5/HO, GPH843T5/HO, GHO36T5, TUV36T5/HO, TUV55WT8/HO, TUV75WT8/HO, GPL35W/HO, GPL60W/HO
    PH7-800-95U 0.46A@240V
    1.0A@110V    		 62.5-108 185*56*38 0.75-0.85 1*55-95 2*18-48 GPH843T5/HO, TUV36T5/HO, TUV55WT8/HO, TUV75WT8/HO
    PH8-800-155 0.70A@240V
    1.53A@110V    		 168 250*65*40 0.75-0.85 55-155 1*lamp: GPH1554T5/HO, GHO64T5, TUV64T5/HO
    2*lamps: GPH843T5/HO, GHO36T5, TUV36T5/HO, TUV55WT8/HO, TUV75WT8/HO
    PH1-900-100 0.47A@240V
    1.02A@110V    		 48-110 215*42*28 0.80-0.90 60-100 TUV75WT8/HO



    Electronic Ballasts for Amalgam UV Lamps
    Type Current & Input
    Voltage    		 Input Power
    (watt)    		 Size
    (mm)    		 Lamp Current
    (A)    		 Lamp Power
    (watt)    		 Lamp Models
    PH7-1200-105U 0.50A@240V
    1.10A@110V    		 49-119 185*56*38 1.10-1.30 42-105 1*lamp: GPHA843T5
    2*lamps: GPHA357T5, GPHA436T5
    PH7-1800-57U 0.62A@110V
    0.28A@240V    		 67 185*56*38 1.70-1.90 57 GPHA357T6

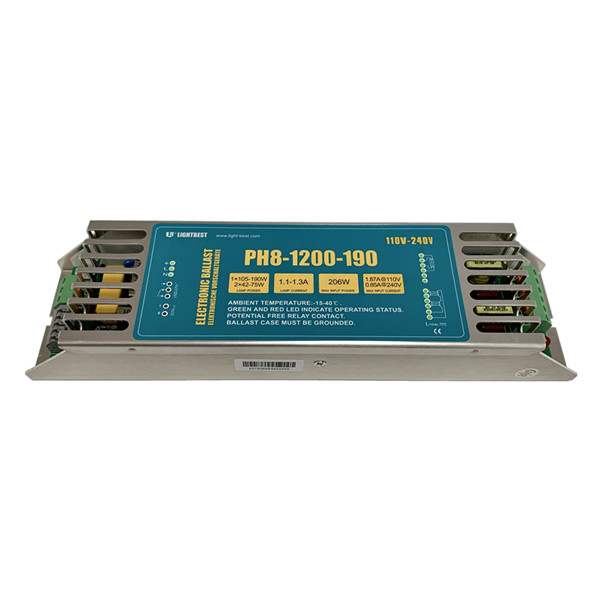

    PH8-1200-190 1.87A@110V
    0.85A@240V    		 206 250*65*40 1.0-1.2 42-190 1*Lamp: GPHA1000T5 GPHA1554T5
    2*Lamp: GPHA843T5  GPHA357T5
    PH8-1800-150 1.50A@110V
    0.68A@240V    		 164 250*65*40 1.7-1.9 65-150 1*Lamp:NNI120/79  NNI120/80  NNI120/84  NIQ120/80  NIQ120/84  TUV115WVHO
    PH8-2100-200 1.98A@110V
    0.90A@240V    		 217 250*65*40 2.0-2.2 200 1*Lamp: GPHHA843T6L/4P GPHHA1000T6L/4P
    2*Lamp: GPHHA357T6L/4P

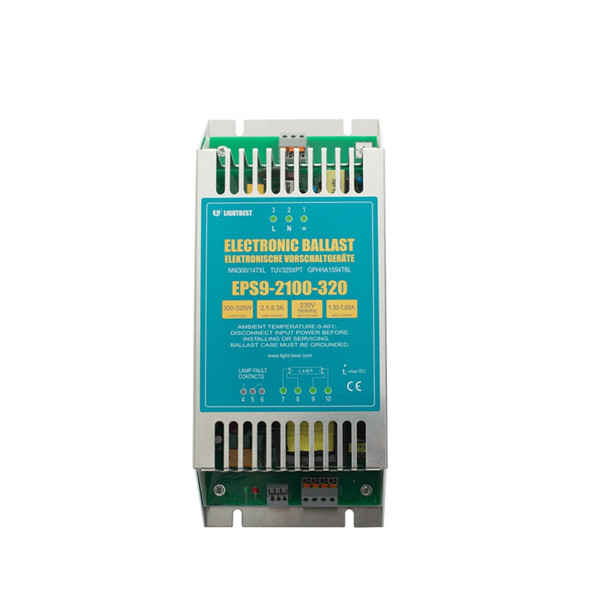

    EPS9-2100-320 1.49A@230V 341 249*108*57 2.0-2.2 80-320 1*lamp: GPHHA1000T6, GPHHA1554T6, NNI300/147XL, TUV325W XPT
    2*lamps: GPHHA357T6, GPHHA436T6, GPHHA843T6
    DC Input Electronic Ballasts
    Type Current & Input
    Voltage    		 Input Power
    (watt)    		 Size
    (mm)    		 Lamp Current
    (A)    		 Lamp Power
    (watt)    		 Lamp Models

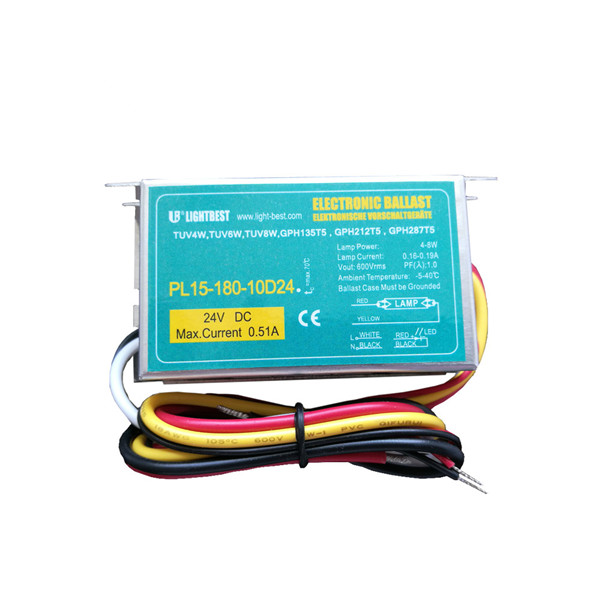

    PL15-180-10D24 0.48A@24V 5.7-11.5 85*43*27 0.16-0.18 4-11 GPH135T5/4W, GPH212T5/6W, GPH287T5/8W, GPL5W, GPL7W, GPL9W, GPL11W  TUV4W, TUV6W, TUV8W, TUV10WT8, LTC4T5, LTC6T5, LTC8T5

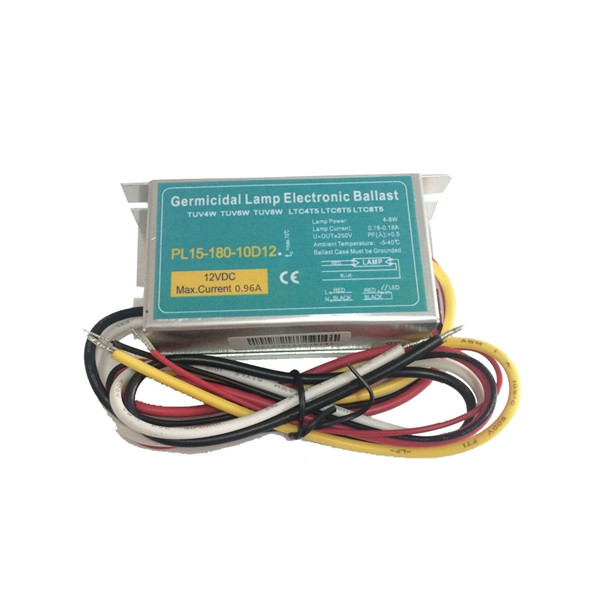

    PL15-180-10D12 0.96A@12V 5.7-11.5 85*43*27 0.16-0.18 4-11 GPH135T5/4W, GPH212T5/6W, GPH287T5/8W, GPL5W, GPL7W, GPL9W, GPL11W， TUV4W, TUV6W, TUV8W, TUV10WT8, LTC4T5, LTC6T5, LTC8T5

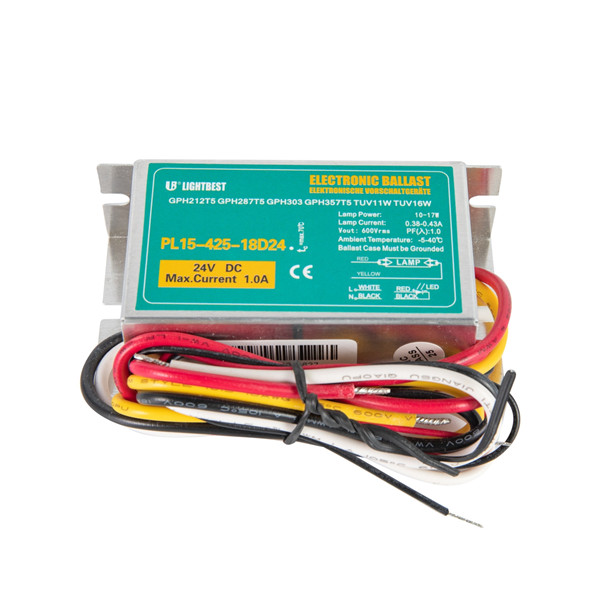

    PL15-425-18D24 1.0A@24V 14.3-24.3 85*43*27 0.35-0.42 10-18 GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W

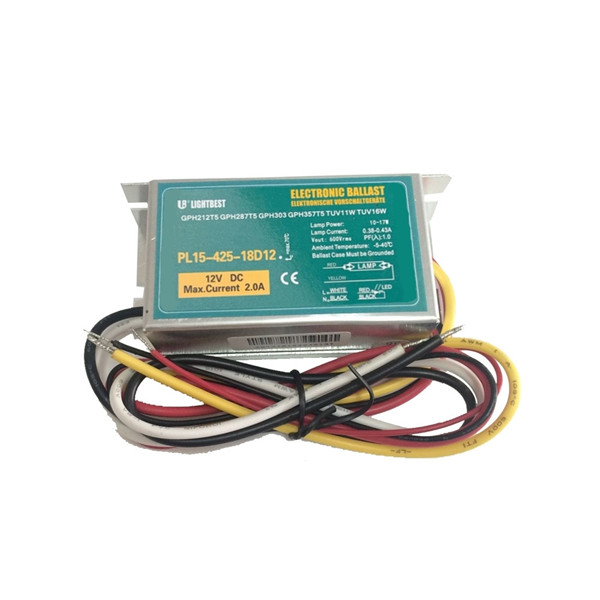

    PL15-425-18D12 2.0A@12V 14.3-24.3 85*43*27 0.35-0.42 10-18 GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W
    Intergrated Electronic Ballasts-220-240VAC, 50/60HZ
    Type Current & Input
    Voltage    		 Input Power
    (watt)    		 Size
    (mm)    		 Lamp Current
    (A)    		 Lamp Power
    (watt)    		 Lamp Models
    PH5-425-40 0.36A@230V 45 105*60*30 0.39-0.43 21-41 GPH212T5, GPH287T5, GPH303T5, GPH357T5, GPH436T5, GPH843T5, TUV11W, TUV16W, TUV36T5, GPL36W

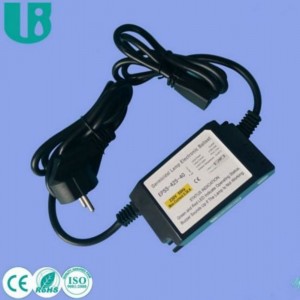

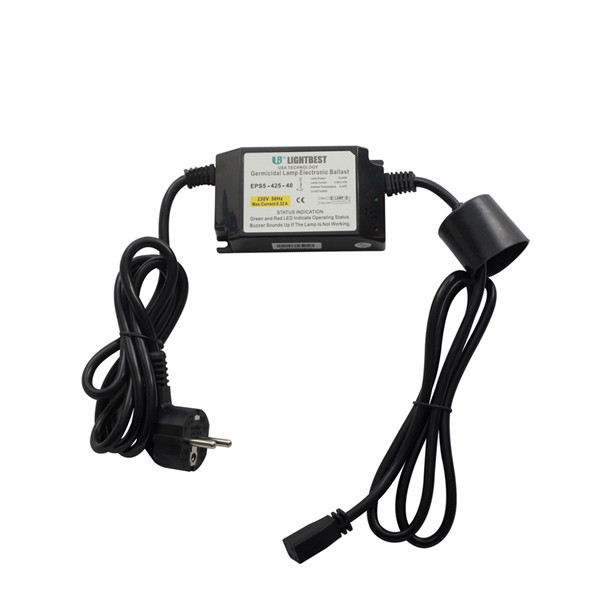

    EPS5-425-40 0.36A@230V 45 105*60*30 0.39-0.43 10-41 GPH212T5, GPH287T5, GPH303T5, GPH357T5, GPH436T5, GPH843T5, TUV11W, TUV16W, TUV36T5, GPL36W
    Intergrated Electronic Ballasts-110-240VAC, 50/60HZ

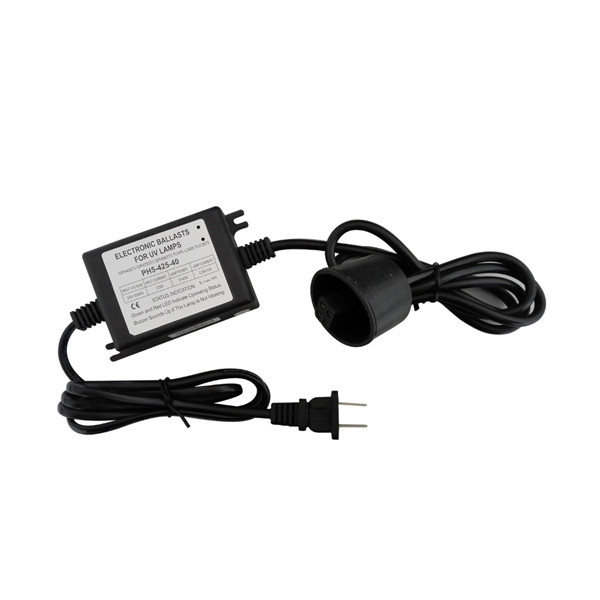

    PH5-425-40U 0.20A@240V
    0.44A@110V    		 45 105*60*30 0.39-0.43 21-41 GPH212T5, GPH287T5, GPH303T5, GPH357T5, GPH436T5, GPH843T5, TUV11W, TUV16W, TUV36T5, GPL36W
    EPS51-425-40L 0.20A@240V
    0.44A@110V    		 45 203*74*53 0.39-0.43 10-41 GPH212T5, GPH287T5, GPH303T5, GPH357T5, GPH436T5, GPH843T5, TUV11W, TUV16W, TUV36T5, GPL36W
    EPS51-800-95L 0.47A@240V
    1.03A@110V    		 57-112 203*74*53 0.80-0.90 48-95 GPH436T5/HO, GPH843T5/HO, TUV36WT5/HO, TUV55WT8/HO, TUV75WT8/HO

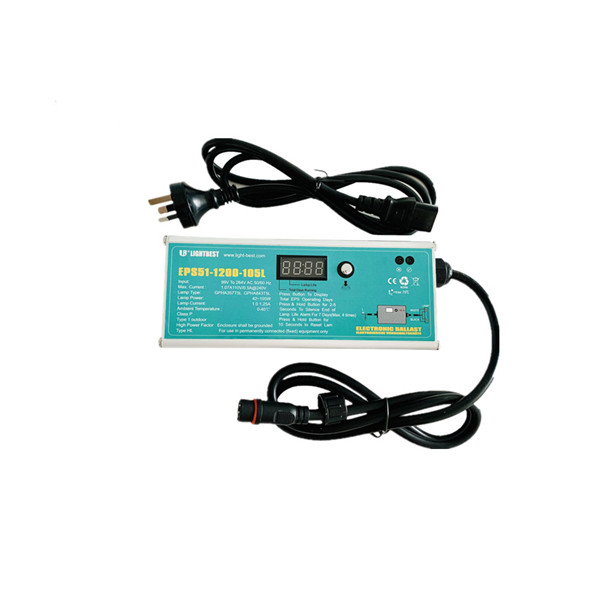

    EPS51-1200-105L 0.52A@240V
    1.14A@110V    		 49-123 203*74*53 1.10-1.30 42-105 GPHA357T5, GPHA436T5, GPHA843T5
